PA4302.224NLT
Manufacturer:
Pulse Electronics
Mfr.Part #:
PA4302.224NLT
Datasheet:
Description:

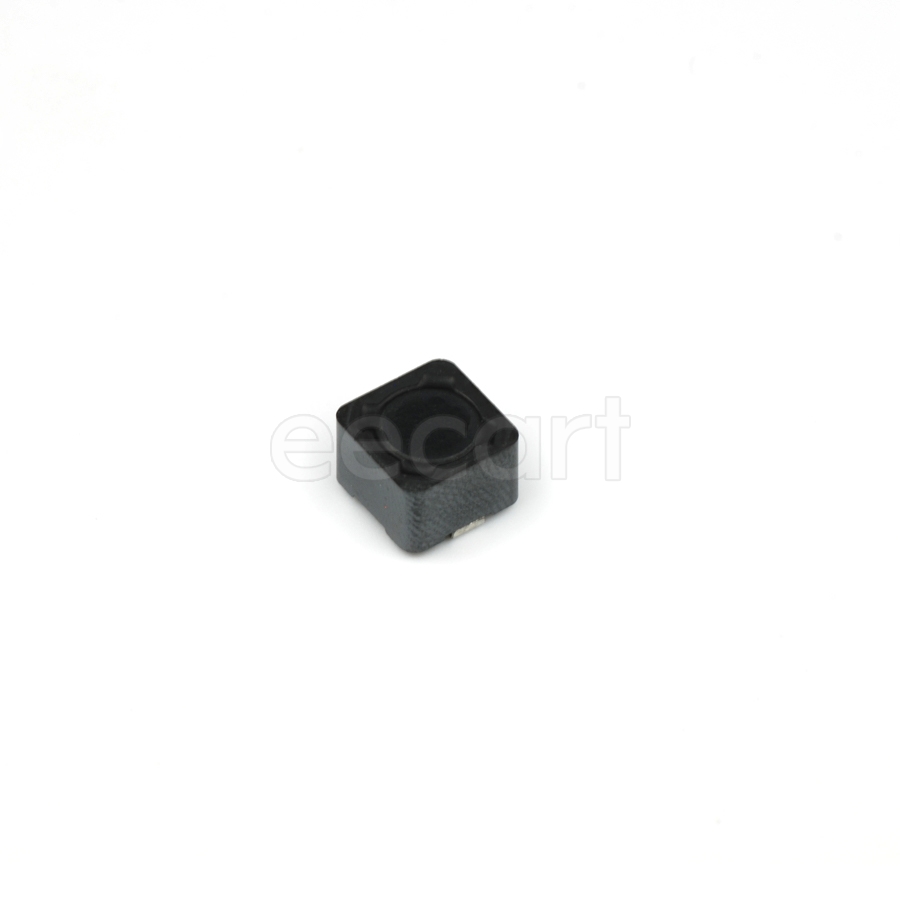

Fixed Inductors 7.50mmL×7.50mmW×5.60mmH PCB Mount 220 µH 20 % 720 mA 765 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.59 mm |
| Length | 7.493 mm |
| Width | 7.493 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Packaging | Reel |
| RoHS | Compliant |
| Type | Wirewound |
| Current Rating | 720 mA |
| DC Resistance (DCR) | 765 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Shielding | Shielded |
| Inductance | 220 µH |
| Core Material | Ferrite |
| Max DC Current | 720 mA |
Stock: 750
Distributors
pcbx
pcbxUnit Price$0.72583
Ext.Price$0.72583
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.72583 | $0.72583 |
| 10 | $0.59503 | $5.95030 |
| 25 | $0.55768 | $13.94200 |
| 50 | $0.52268 | $26.13400 |
| 100 | $0.48987 | $48.98700 |
| 300 | $0.43940 | $131.82000 |
| 500 | $0.39413 | $197.06500 |
